Brake pads and rotors cost is only part of what you pay for a truck brake job. The full bill is parts plus labour, and depending on what the brakes need it can also carry calipers, slide pin service, hardware, brake fluid and parking brake shoes. The quickest way to a real number for your own truck is to book a brake inspection with our service team and price the job from what the measurements show.

If you are not sure your brakes are due yet, start with our guide on when to replace brake pads on a truck, which covers the signs and the measurements. This post is about the bill itself: what each line is for, why a 2500 or 3500 can cost more than a half ton, and what a cheap brake job leaves out.

Key Takeaways

• There is no single price for a truck brake job. The bill is pads and rotors, labour, and whatever else the inspection turns up on that axle.
• A rusted rotor is often replaced, not machined. A rotor has a minimum thickness, and cutting out deep pitting can take it under that line.
• Calipers and slide pins are where rust reaches the bill. A caliper that cannot slide presses on one side of the rotor or drags.
• The small parts count. Abutment clips are a wear item, best replaced when the pads are replaced.
• A heavy duty can cost more: pads and rotors are matched to the model, and a dually has two wheels to remove at each rear corner.
• A cheap job can skip the slide service, the hardware or the rotor, and the result can be uneven, early pad wear and a second visit.

What Goes Into a Truck Brake Bill

Think of a brake estimate as a list of lines, one axle at a time. Some lines show up on nearly every job and some only when a part has given up.

Pads

The pads are the wear item at the centre of the job: friction material bonded to a steel backing plate, sold as a set for one axle. Front and rear pads are different parts, so a front job and a rear job are priced on their own.

Rotors, and Why a Rusted One Gets Replaced

The rotor is the disc the pads squeeze. Every rotor has a minimum thickness, and Bumper, a car advice site, notes that manufacturers have it "stamped or cast into the rotor hub or hat area." A rotor at or below that number gets replaced.

Machining, also called resurfacing, shaves the faces flat again, which removes metal. Bumper lists replacement when "The rotor would fall below minimum thickness after machining," and adds that "For many vehicles, replacement is the better value even when resurfacing is technically possible."

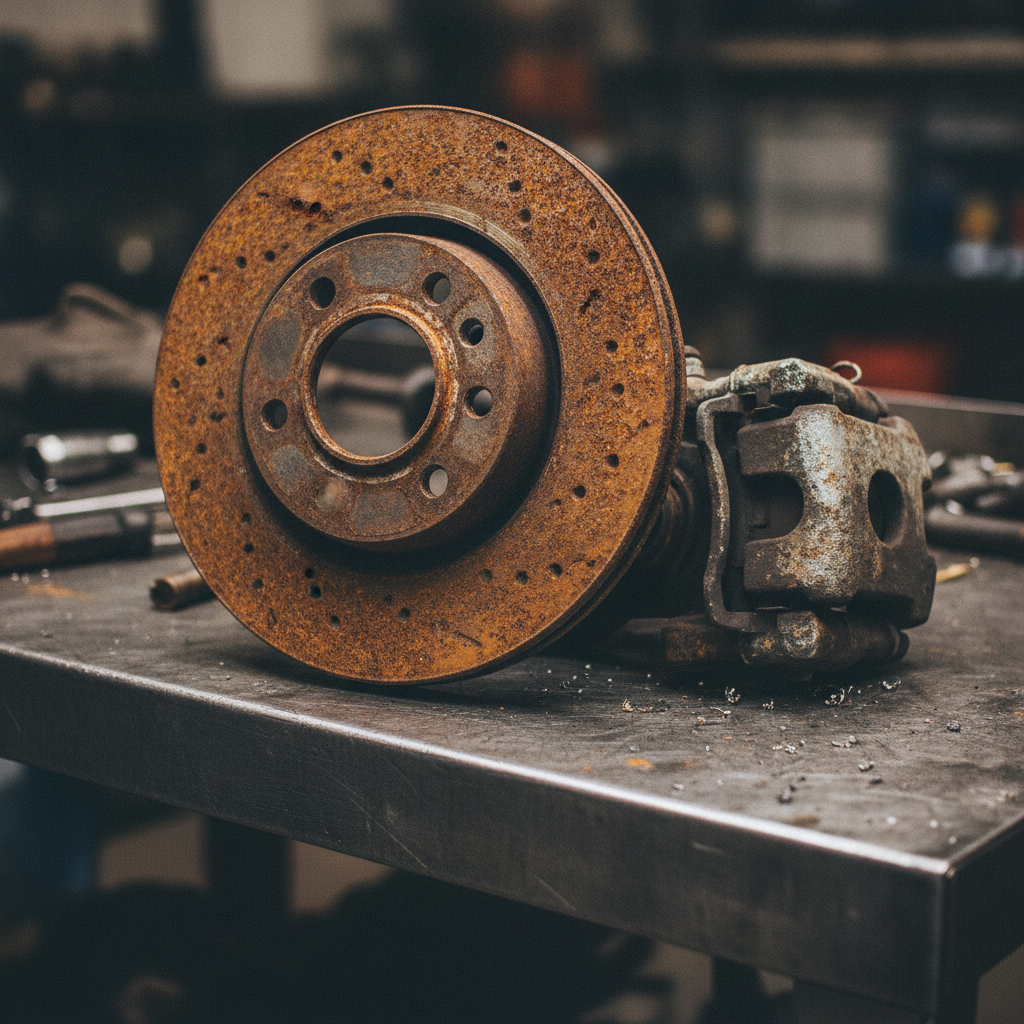

This is where a Manitoba winter comes in. A light film of rust after a wet night wears off in a few stops. Heavy pitting that stays after driving is a different matter. To machine pitting out, the cut has to go below the deepest pit, and a rotor that has spent a few winters on salted highways between Portage and Winnipeg may not have that much metal to spare. If your rotor trouble shows up as a shake under braking, our post on brake shudder and the warped rotor myth covers that one.

Calipers and Slide Pins

The caliper is the clamp that holds the pads and pushes them against the rotor. On a floating caliper, the body slides on a pair of pins so both pads clamp evenly. MOTOR magazine puts the stakes plainly: "The caliper must be able to move; otherwise it will apply pressure on only one side of the rotor when the brakes are applied." It adds that binding pins can keep the caliper from releasing, which causes brake drag.

Rust is the usual enemy here. The same article notes that caliper brackets are normally made of ferrous material that tends to rust in most climates, and that the rust can build up in the channels that locate the pads until the pads bind. Months of slush and brine on a prairie highway give that rust plenty to work with.

So this part of the truck can add two lines. A slide service cleans and lubricates the pins so they move freely. A caliper or bracket that will not work properly even after that becomes a replacement part. While the wheels are off, the lines and hoses are in view too, and our post on rusted brake lines in Manitoba covers that side of the corrosion story.

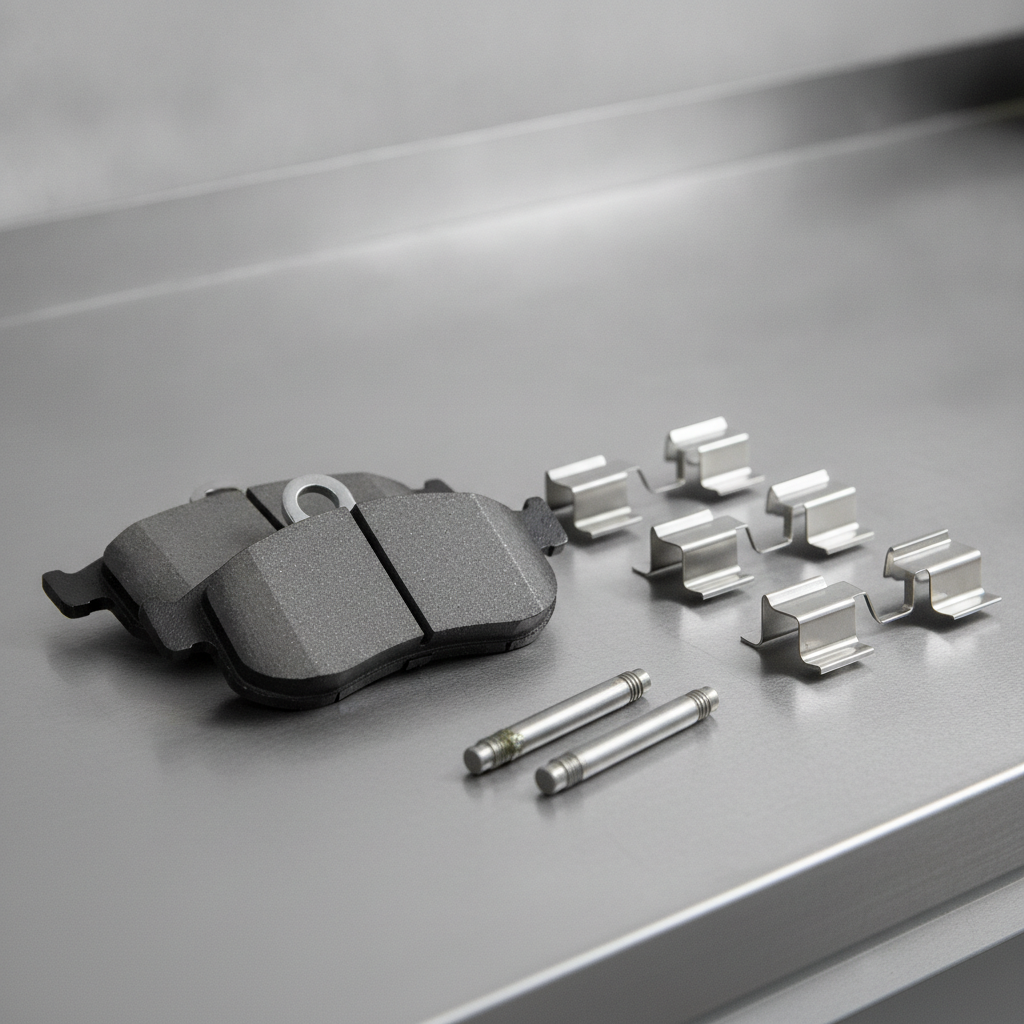

Hardware

Hardware is the small stuff, and an easy line to skip: the abutment clips the pads ride on, and on some designs shims and springs. MOTOR magazine's advice is direct: abutment clips "should be considered a wear item that's replaced during any complete brake job. Even if a clip looks brand new, it should be replaced when the pads are replaced."

Brake Fluid

Fluid is not on every brake bill, but it can land there. Replacing a caliper opens the hydraulic system, so ask whether the fluid will be bled or replaced at the same time. Brake fluid also ages on time rather than distance, which our post on the brake fluid change interval explains.

Parking Brake Shoes Inside the Rear Rotor

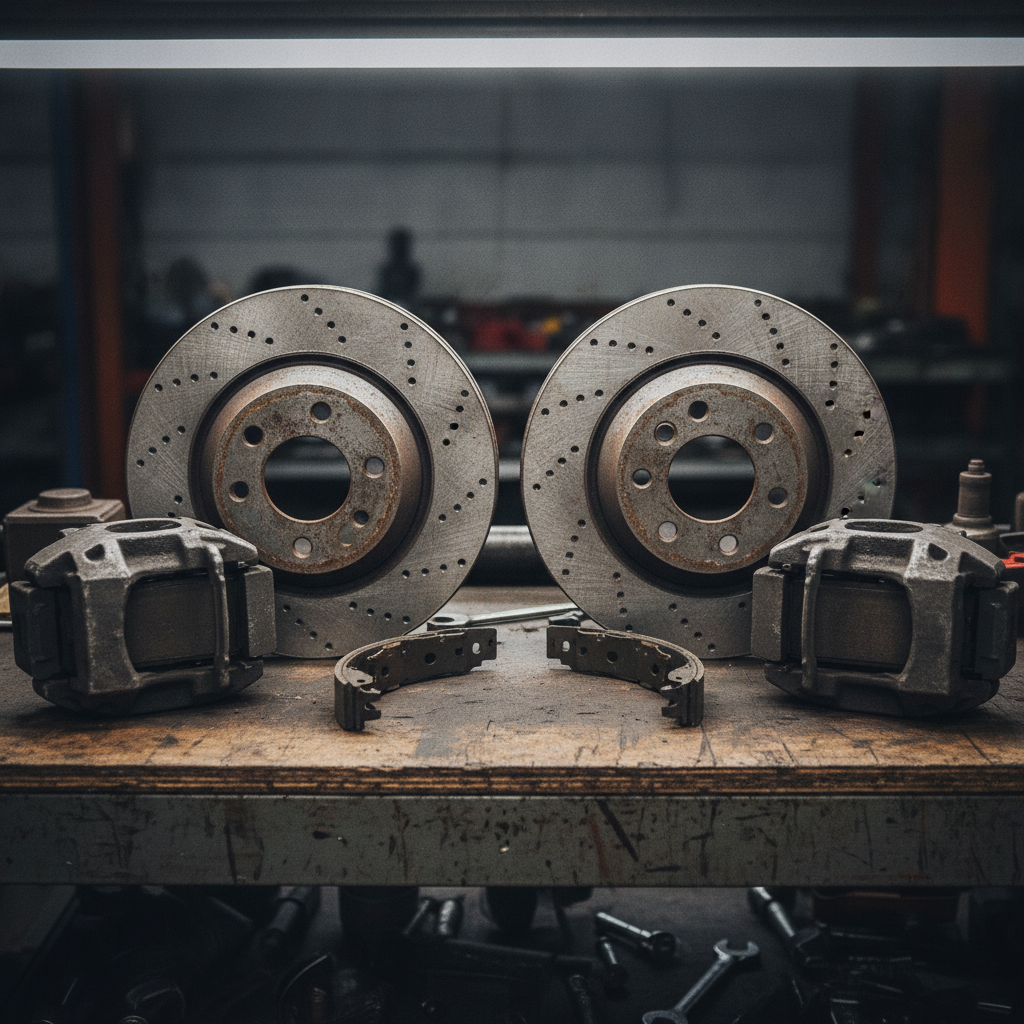

On many trucks with rear disc brakes, the parking brake is not the pads at all. It is a small pair of shoes that sits inside the centre, or hat, of the rear rotor and presses outward against it when you set the brake. The trade calls it a drum in hat parking brake. Because the shoes sit inside the rotor, a rear brake job is the time they can be seen.

Brake & Front End magazine describes a common problem on vehicles whose parking brake is seldom used: rust and corrosion build up inside the drum until the rotor sticks to the parking brake. When the shoes, springs or adjuster are worn or seized, they become their own line. Parking brake designs differ by model and year, so ask our service team which one your truck uses.

Why a Heavy Duty Brake Job Can Cost More

A Ram 2500 or 3500 can cost more to brake than a half ton for plain mechanical reasons.

The parts are matched to the model. Pads and rotors are matched to the model, so ask our parts department for the set that fits your truck.

A dually has more wheels in the way. On a 3500 with dual rear wheels, each rear corner has two wheels to remove and refit before anyone reaches the brake, and that is labour time.

Heavy work wears brakes sooner. Bumper lists heavy vehicles and towing, with their increased braking load per stop, among the things that shorten rotor life. A truck that pulls a grain trailer at harvest or a camper out to Lake Manitoba can need brakes more often, even when each job is priced the same.

What a Cheap Brake Job Leaves Out

A low brake quote can be a pads only quote, or close to it. That is the right job when the rotors measure well and the calipers move freely. When they do not, here is what the low number tends to leave out.

• The slide service. New pads in a caliper that cannot slide still bind. MOTOR magazine is clear about the result: pads that bind "will apply unevenly and will not release completely. This will cause uneven and premature pad wear."
• The hardware. Old clips with rust built up behind them can hold new pads tight in their channel, which is the same binding problem.
• The rotor. New pads against a rotor that is pitted or near its minimum thickness put the rotor decision off rather than avoid it.

Put together, a cheap job can bring the truck back for brakes sooner than a properly done set of pads should, and the second visit pays for the parts the first one skipped. If it comes back as a noise, our post on what brake squealing or grinding means sorts the sounds.

Getting the Brake Pads and Rotors Cost for Your Truck

No dollar figure appears in this post on purpose. Pads and rotors differ by model and by axle, the other lines depend on what the measurements show, and a front job and a rear job are separate amounts. Our service department does brakes: pads, rotors and parking brake. When you book your brake appointment online, tell the team:

• Which truck it is: 1500, 2500 or 3500, and single or dual rear wheels
• Whether you tow, and what
• Any noise, pull, shudder or soft pedal
• When the brakes were last done, and whether that was front, rear or both

If you do your own brake work, ask our parts department whether the pads, rotors and hardware for your truck are in stock or can be ordered.

FAQs

How much do brake pads and rotors cost on a truck?

It depends on the truck, the axle and what else the brakes need, so there is no single honest number. The bill is the pads and rotors, labour for each axle, and any calipers, slide service, hardware, fluid or parking brake shoes the inspection calls for. Book a brake inspection and get the figure for your own truck.

Why does a heavy duty brake job cost more than a half ton?

It can, for mechanical reasons. Pads and rotors are matched to the model, and a 3500 with dual rear wheels has two wheels to remove at each rear corner, which adds labour time.

Can my rotors be machined instead of replaced?

Only if they stay above their minimum thickness after machining. Bumper, a car advice site, says a rotor that would fall below minimum thickness after machining is replaced, and that for many vehicles replacement is the better value even when resurfacing is technically possible. Deep rust pitting makes that cut deeper.

What does a cheap brake job leave out?

Often the slide service, the hardware or the rotor. Without them, new pads can bind, apply unevenly and wear early, which is how a cheap job can bring the truck back sooner.

Can I keep driving with a sticking caliper?

It is not one to put off. MOTOR magazine notes that binding caliper pins can keep the caliper from releasing, which causes brake drag, and that binding pads wear unevenly and early. If your truck pulls, drags or smells hot after a drive, book a brake inspection.

Does Dunn Ram Trucks do brake work?

Yes. Our service department does brakes: pads, rotors and parking brake. For what your own truck needs, book a brake inspection with our service team.

The Bottom Line

Brake pads and rotors cost is the headline, but the real bill on a truck is the whole corner: the rotor that may be too pitted to machine, the caliper and pins that have to slide, the clips the pads ride on, and on many trucks the parking brake shoes hiding inside the rear rotor. A cheap job saves money by leaving some of those lines off, and the truck tends to tell you later.

Get the corner measured and priced as a whole. Book a brake inspection before the salt season gets going, and if the repair list on an older truck is getting long, get an instant cash offer from our trade-in value tool before you decide.

Tyler Dunn, Dunn Ram Trucks, Portage la Prairie
