The question almost never arrives as a spec question. It arrives in March, when the approach into a yard has a hard drift across it and you have to decide whether to hit it or back out. Or it arrives in April, when the field road is rutted deep enough that you are watching the crossmember and not the windshield. That is when a truck buyer starts caring about ground clearance, and by then it is too late to shop for it.

So here is the straight answer on what a Ram 1500 actually clears, where the number comes from, and which of those inches you will ever use out here. If you want to see what is on the ground right now, our new Ram 1500 inventory is online and updated as trucks move, and the stance is easy to check in person on the lot in Portage la Prairie.

Key Takeaways

• There is no single Ram 1500 ground clearance number. It changes with trim, tire size and whether the truck has coil springs or the available air suspension. Ram Canada publishes 218.4 mm, about 8.6 inches, for the 2026 Ram 1500 Sport.
• The air suspension is the big variable. Ram's published figures for the Active Level four corner air suspension put normal ride height at 8.7 inches of clearance, Off road 1 at 9.1 inches, and Off road 2 at 10.1 inches, with a park position that drops the truck 2 inches for loading. Total lift span is four inches.
• The Rebel starts an inch higher than the rest. Its factory ride height is raised 1 inch, on 33 inch all terrain tires, with Bilstein monotube shocks, an electronic locking rear differential, underbody skid plates and front tow hooks as standard off road content.
• The RHO is the clearance answer. Ram publishes 11.8 inches of ground clearance for the 1500 RHO, from a 2 inch ride height increase over the rest of the lineup plus 35 inch tires, along with up to 32 inches of water fording and rear axle travel up to 14 inches.
• Clearance is not the number that strands you. Around here the truck that gets stuck is usually the one that ran out of traction or ran out of approach angle, not the one that ran out of inches under the diff. Tires and how you enter the drift matter more than the last half inch.

What the Published Numbers Actually Are

Ram publishes ground clearance by configuration rather than as one lineup wide figure, which is why you get a different answer depending on which page you land on. Here is what is actually confirmed.

The mainstream trims on coil springs. Ram Canada lists 218.4 mm of ground clearance on the 2026 Ram 1500 Sport, which works out to roughly 8.6 inches. Treat that as the ballpark for the standard coil sprung trucks. Tire size and trim shift it, so the figure on your specific build sheet is the one that counts.

With the Active Level four corner air suspension. This is the class exclusive system, available on Crew Cab. Ram's published figures for it are worth reading carefully, because the truck is not one height, it is five:

• Normal ride height is the default, load leveled setting, published at 8.7 inches of clearance measured from the base of the door sill.
• Aero mode lowers the truck 0.6 inches below normal at highway speed, which Ram credits with up to a one percent efficiency gain.
• Off road 1 lifts 1.2 inches above normal, reaching 9.1 inches of ground clearance.
• Off road 2 raises clearance 2 inches over normal, to 10.1 inches.
• Park, or entry and exit drops the truck 2 inches for getting in, getting out, and loading the box.

The four corner system delivers four inches of lift span end to end. Ram also published a 20.9 inch step in height at the lowest setting, a 27.3 degree departure angle and a 23 degree breakover angle for the truck at its best.

The Rebel. Ram builds the Rebel with a 1 inch raised ride height from the factory, on 33 inch all terrain tires, and the air suspension is available on top of that. The rest of the standard off road content is the part that actually earns its keep: Bilstein monotube shocks front and rear, an electronic locking rear differential, underbody skid plates, front tow hooks and hill descent control.

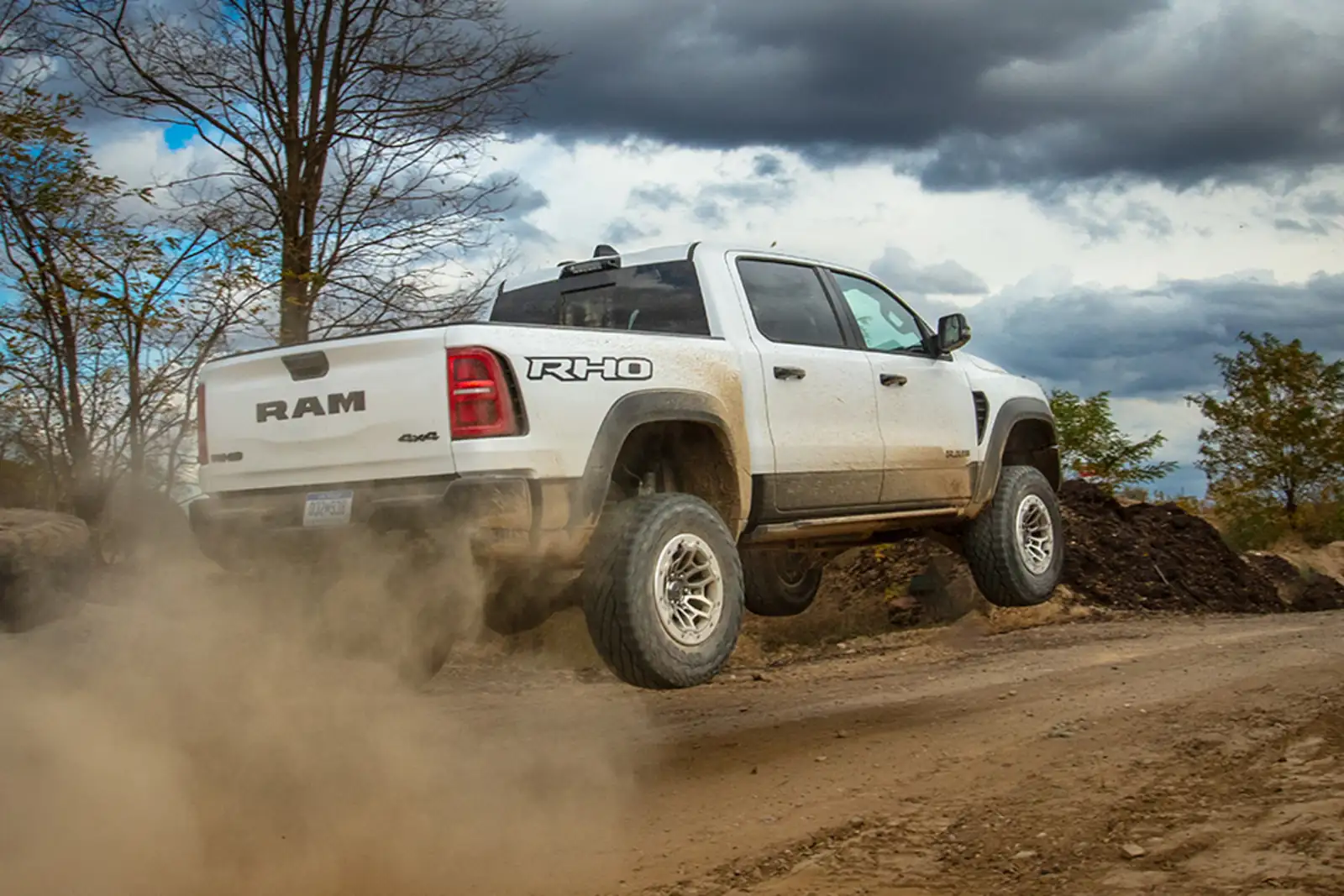

The RHO. This is where the number stops being a compromise. Ram publishes 11.8 inches of ground clearance for the 1500 RHO, which comes from a 2 inch ride height increase over the rest of the 1500 lineup together with 35 inch tires. Ram also publishes up to 32 inches of water fording and rear axle travel of up to 14 inches, which is more than 40 percent additional rear wheel travel compared with the rest of the lineup.

One honest note on all of this. Published figures are for the configurations Ram tested. Change the tire, add running boards, hang a plow mount off the front, and you have changed the truck. We will read the numbers off your actual build before you commit to anything.

Ground Clearance Versus Running Clearance, and Why the Difference Matters Here

Ground clearance is the distance from level ground to the lowest fixed point under the truck. It is a single number, measured on a flat surface, and it tells you almost nothing about whether you will make it through a drift.

What actually decides that is running clearance, which is what the truck keeps underneath it while it is moving through uneven ground with the suspension cycling and weight transferring. A truck at 8.6 inches static does not have 8.6 inches when the front is loaded, the springs are compressed, and the nose has dropped into a rut.

Out here that distinction shows up three ways.

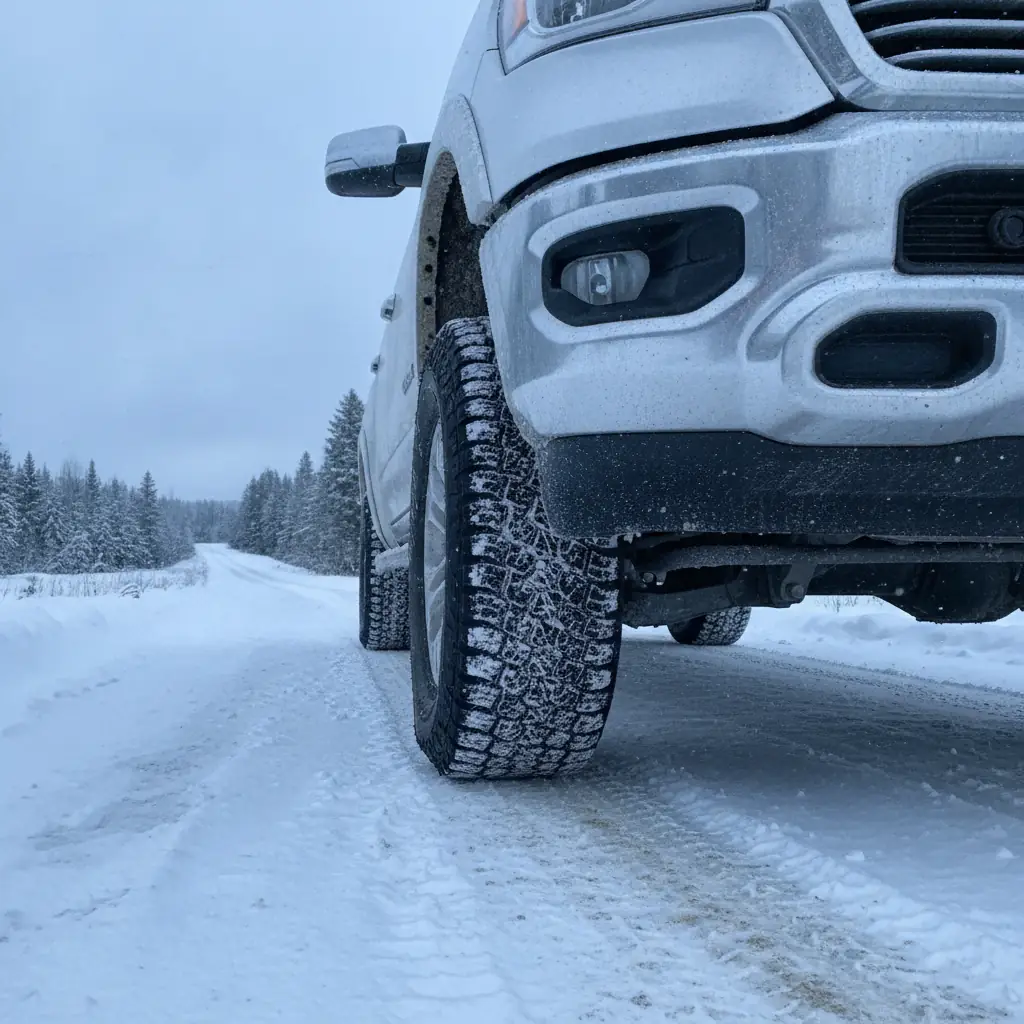

The drifted approach. A drift is not soft all the way through. The bottom eight inches of a March drift is usually a wind packed crust that will hold weight and drag on your crossmember at the same time. Clearance keeps you on top of it. Momentum and tires decide whether you stay on top. This is the exact case where a truck with an extra inch and a proper all terrain tire walks through and a truck with a slick highway tire packs snow into the wheel wells and stops.

The field or gravel approach angle. Coming off a graded road into a field entrance is an approach angle problem before it is a clearance problem. The front air dam and the lower bumper hit before anything under the middle of the truck does. That is why the Rebel and RHO packages raise the whole truck rather than just adding a skid plate.

Spring ruts. A rutted approach in April is the one that finds the differential. Ruts are where a real inch of clearance genuinely pays, and where the air suspension's Off road 2 setting is not a gimmick.

If you are choosing between trims, this is the practical read: the coil sprung trims are the right truck for the vast majority of driving around Portage la Prairie, the air suspension is worth it if you regularly load the box or hitch alone and want the park setting, and the Rebel is the answer if you actually leave pavement in a way that keeps costing you. If you want the full dimensional picture rather than just clearance, our post on Ram 1500 weight and dimensions covers the length, width, height and curb weight side of the same question, and the Ram 1500 RHO breakdown goes deeper on the off road end of the lineup.

What We Tell People on the Lot

Nobody has ever come back to us in February and said the truck would have made it with another half inch of clearance. What they say is that the tires were done, or that they hit the drift at the wrong angle and lost momentum.

So the order of operations we actually recommend is tires first, then trim, then clearance. A properly rated winter or all terrain tire on a standard Big Horn will out perform a worn all season on a Rebel every time, and it costs a fraction of the trim jump. If your truck is due, book service with us and we will tell you honestly whether your tires have another season in them or not.

The second thing we tell people is to stop shopping on the spec sheet alone and go stand beside the trucks. The difference between 8.6 inches and 9.6 inches is visible from ten feet away, and the difference in how a Rebel sits versus a Laramie is something you will feel every time you get in. That is a five minute walk around the lot, not a research project.

Every new Ram 1500 we sell carries Dunn's Eh+ value stack, which includes the maintenance plan, anti theft protection, walkaway coverage and absolutely zero dealer fees, so what you are quoted is what you pay. If you are stepping up from something you already own, start with our instant cash offer on your trade so you know your number before you shop.

FAQs

How much ground clearance does a Ram 1500 have?

It depends on the configuration. Ram Canada publishes 218.4 mm, roughly 8.6 inches, for the 2026 Ram 1500 Sport. With the Active Level four corner air suspension, Ram's published figures put normal ride height at 8.7 inches of clearance, Off road 1 at 9.1 inches and Off road 2 at 10.1 inches. The Rebel adds a 1 inch factory ride height increase, and the RHO is published at 11.8 inches.

How much does the Ram 1500 air suspension raise the truck?

Ram's published figures give the Active Level four corner system a four inch total lift span. From normal ride height it lowers 0.6 inches in Aero mode, lifts 1.2 inches in Off road 1, raises clearance by 2 inches in Off road 2, and drops 2 inches in the park position for entry, exit and loading.

Which Ram 1500 has the most ground clearance?

The Ram 1500 RHO, at a published 11.8 inches. Ram credits that to a 2 inch ride height increase over the rest of the 1500 lineup plus 35 inch tires, along with up to 32 inches of water fording.

Is a Ram 1500 Rebel higher than a Big Horn?

Yes. The Rebel is built with a 1 inch raised ride height from the factory and rides on 33 inch all terrain tires, with Bilstein monotube shocks, an electronic locking rear differential, skid plates and front tow hooks as standard content. The air suspension is available on top of that.

Is 8.6 inches of ground clearance enough for Manitoba winter?

For the driving most people actually do, yes. Highway, town, a plowed yard and a gravel road are all well within it. Where the extra clearance earns its money is unplowed approaches, deep drifted field entrances and rutted spring roads. Tires and momentum decide more outcomes out here than the last inch of clearance does.

Does adding bigger tires change the published ground clearance?

Yes, and it changes other things with it. A taller tire lifts the axle differential and the lowest fixed points, but it can also affect speedometer accuracy, load rating and how the truck behaves with the electronic systems. Ask us before you go up a size so you know what you are actually changing.

The Bottom Line

A Ram 1500 gives you a published 8.6 inches on a standard Sport, up to 10.1 inches with the air suspension in its off road setting, an extra inch from the factory on a Rebel, and 11.8 inches on an RHO. Those are real, published numbers and they matter. They just matter less than the tires you put underneath them and the way you take the approach.

Come look at the stance in person. Take a walk down our new Ram 1500 inventory, tell us what your yard and your field entrance actually look like in March, and we will tell you which trim is the honest answer and which one is money you do not need to spend.

Tyler Dunn, Dunn Ram Trucks, Portage la Prairie
