Most people asking how much a Ram 1500 weighs are not idly curious. They are trying to work out whether the truck clears the garage door, whether it fits the parking pad, whether their trailer brakes are legal behind it, or whether the plate class they are about to buy actually covers what they haul. Those are all fair questions, and they all get worse answers online than they should, because a Ram 1500 is not one size. Cab and box change the numbers substantially. Here is the whole answer set in one place, with real figures, and if you would rather just come measure one yourself, our new Ram 1500 inventory in Portage la Prairie is online and the trucks are sitting right here on the lot.
Every number below is from Ram Canada's own published 2026 model year specifications. Where a figure genuinely varies by trim or configuration, it is given as a range, not squeezed into one tidy number that would be wrong for most of you.
Key Takeaways
- A Ram 1500 weighs roughly 2,280 to 2,410 kg, which is about 5,030 to 5,310 lb, depending on cab, box, trim and drivetrain. A Quad Cab Tradesman sits at the light end, a loaded crew cab at the heavy end, and the performance and top luxury trims go higher still.
- Length runs from about 5,814 mm to about 6,142 mm, which is roughly 19 feet 1 inch to 20 feet 2 inches. That spread is entirely a cab and box decision.
- Height is about 1,971 to 1,974 mm, or roughly 6 feet 5.7 inches, on the mainstream trims. Body width is 2,085 mm, or 82.1 inches, and that number does not include the mirrors.
- Yes, a Ram 1500 is a half ton. That is a legacy class name, not a payload figure. A current Ram 1500 carries well past half a ton.
- The number that decides your garage is height plus length, not weight. A stock Ram 1500 clears a standard 7 foot door with inches to spare, but a 20 foot garage and a 20 foot truck do not get along.
How Much Does a Ram 1500 Weigh?
Answer first: a 2026 Ram 1500 has a curb weight of roughly 2,280 to 2,410 kg, which is about 5,030 to 5,310 lb, across the mainstream Canadian configurations Ram publishes.
Curb weight means the truck as it sits with fluids and a full tank, no people, no gear, no trailer. Here is how it breaks down on the specific builds Ram Canada lists.
| Configuration | Curb weight |
|---|---|
| Quad Cab, 6 foot 4 box, Tradesman | 2,282 kg (5,031 lb) |
| Quad Cab, 6 foot 4 box, Big Horn | 2,296 kg (5,062 lb) |
| Crew Cab, 5 foot 7 box, Warlock | 2,317 kg (5,108 lb) |
| Crew Cab, 5 foot 7 box, Sport | 2,410 kg (5,313 lb) |
The pattern is worth understanding, because it tells you where your own build will land. More cab, more content and more equipment all add weight. A four door crew cab with heated everything, a sunroof, a bigger screen, running boards and a heavier engine will outweigh a work spec Quad Cab by a couple hundred kilograms without either truck being unusual. The performance and top luxury trims sit above this range, so if you are shopping a specific RHO or a top trim build, ask us for the exact number on that truck rather than borrowing one from a chart.
The related figure you probably actually want is GVWR, the gross vehicle weight rating, which is the maximum the truck is rated to weigh fully loaded. On those same builds Ram lists 3,084 to 3,221 kg, or about 6,800 to 7,101 lb. Payload is simply GVWR minus curb weight, and on those configurations it works out to roughly 789 to 812 kg, about 1,740 to 1,790 lb. Some engine and axle combinations rate meaningfully higher. If payload is the real question behind your search, our full Ram 1500 payload breakdown goes through it properly, and the Ram 1500 towing capacity guide covers the trailer side.
How Long Is a Ram 1500?
Answer first: from about 5,814 mm to about 6,142 mm, which is roughly 19 feet 1 inch to 20 feet 2 inches, depending on cab and box.
| Configuration | Overall length |
|---|---|
| Quad Cab, 6 foot 4 box | 5,814 mm (228.9 in) |
| Crew Cab, 5 foot 7 box | 5,916 mm (232.9 in) |
| Crew Cab, 6 foot 4 box | about 6,142 mm (241.8 in) |
Wheelbase follows the same logic: 3,569 mm (140.5 in) on the Quad Cab, 3,670 mm (144.5 in) on the crew cab with the short box, and about 3,899 mm (153.5 in) on the crew cab with the long box. The box itself measures 1,712 mm (67.4 in) for the 5 foot 7 and 1,938 mm (76.3 in) for the 6 foot 4.
Notice the thing most size charts bury: a Quad Cab with the long box is actually shorter overall than a crew cab with the short box. If you want maximum box and minimum truck, that is the configuration to look at. If you want back seat room your family will not complain about on the drive to the lake, the crew cab wins and you accept the extra four inches of truck.
How Tall and How Wide Is a Ram 1500?
Answer first: about 1,971 to 1,974 mm tall, which is roughly 6 feet 5.7 inches, and 2,085 mm wide across the body, which is 82.1 inches or about 6 feet 10 inches.
Two honest caveats sit on those numbers. Height varies with trim, suspension and tires, so lifted off road trims and anything on a taller tire package sit higher than the figures above. And the width quoted is body width, mirrors excluded. Mirrors add real inches on each side, which matters far more than most buyers expect the first time they try a narrow garage or a tight drive through.

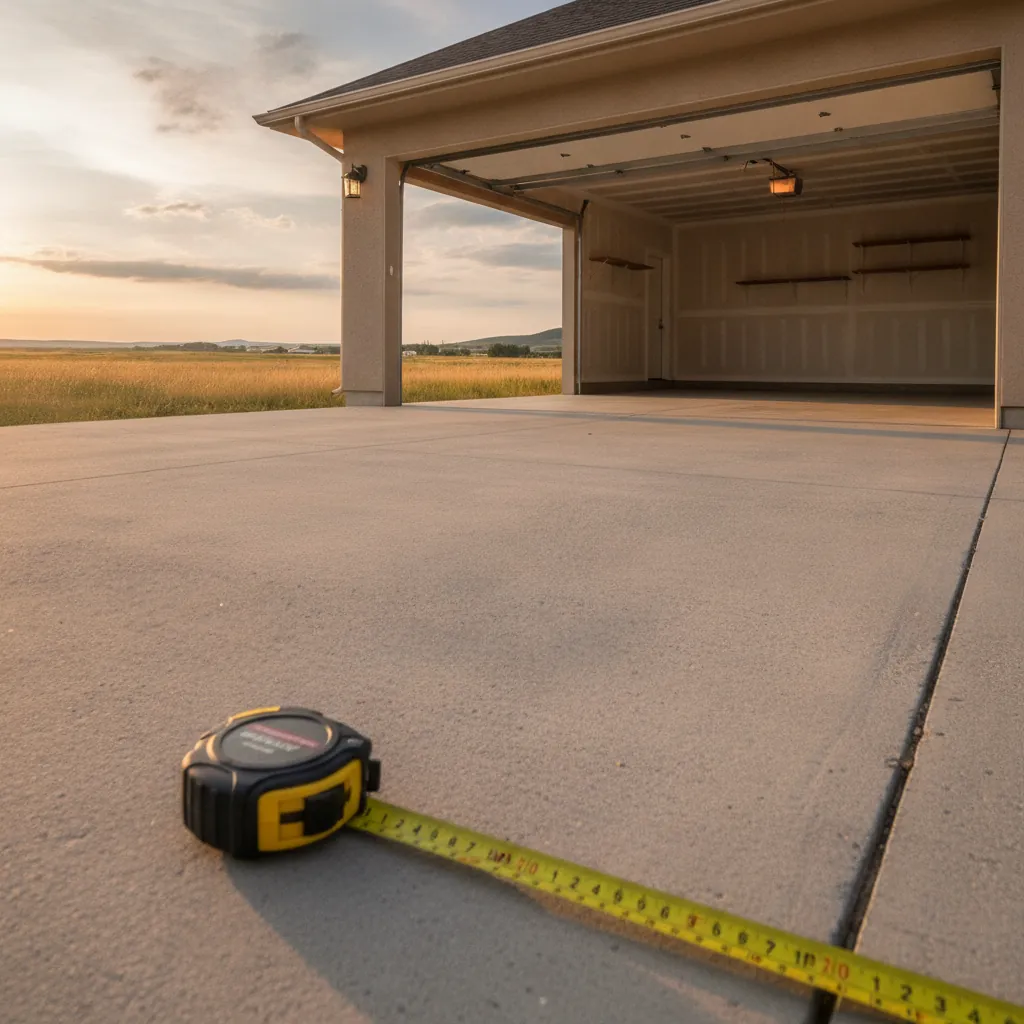

This is where the size question stops being trivia and starts costing money. A standard residential garage door is 7 feet, or 2,134 mm, so a stock Ram 1500 goes under it with roughly six inches of clearance. That sounds comfortable until you add a roof rack, a light bar, a taller tire package or a lift, and then it is not comfortable at all. Plenty of downtown Winnipeg parkades post clearances in the 2 metre range, and a stock 1500 at about 1.97 m is only inches under that with nothing on the roof.
Length is the sneakier problem out here. A lot of older Portage and Winnipeg garages were built around 20 feet deep, back when a half ton was genuinely smaller. Park a crew cab with the 6 foot 4 box in one of those and you are choosing between a closed door and a workbench. Measure your garage before you commit to a box length, not after. We have had more than one customer come back for a shorter box for exactly that reason, and it is a much cheaper conversation to have before delivery.
Is a Ram 1500 a Half Ton?
Answer first: yes. The Ram 1500 is the half ton in the Ram lineup, sitting below the 2500 and 3500 heavy duty trucks.
The name is a leftover from an era when a light truck was rated to carry about 1,000 lb and everyone described trucks that way. Half ton meant 1,000 lb, three quarter ton meant 1,500 lb, one ton meant 2,000 lb. Modern trucks blew past those figures decades ago. A current Ram 1500 carries well over a half ton of payload, and the class names survive only as shorthand for light duty, medium and heavy duty.
Practically, that shorthand still tells you something useful. The 1500 is the truck for daily driving, a family, a boat, a smaller camper and normal loads. The moment you are talking about a big fifth wheel, a serious gooseneck or hauling grain wagons and heavy equipment, you have left half ton territory and you want a 2500 or a 3500 instead. That is a conversation worth having honestly rather than stretching a 1500 into a job it should not have.
What These Numbers Mean on a Manitoba Road
Curb weight is not just spec sheet trivia around here. Three places it shows up in real life.
Registration. When you plate a truck in Manitoba, the gross weight you register at has to cover the truck, everything in it, and the tongue weight of whatever you are pulling. People routinely register light and then find out the hard way when they are loaded. Bring us what you actually haul and we will walk through GVWR versus your real world load before you decide.
Spring road restrictions. Manitoba puts seasonal weight restrictions on a lot of designated roads through the spring thaw. They are aimed at heavy loads, not at an empty half ton, but if you are running a loaded trailer to a farm or a job site on a restricted road, the axle limits are what matter, not your curb weight. Check the posted restriction before you commit to a route.
Winter traction. More than 5,000 lb of truck with an empty box behind the rear axle is exactly why a Ram 1500 feels light in the back on an icy morning. That is not a flaw in the truck, it is physics, and it is a genuine argument for winter tires and for weight in the box in January if you are not carrying anything.
If you are weighing a trade against a new build, our instant cash offer tool gets you a starting number, and every new Ram 1500 we sell carries the Eh+ value stack with zero dealer fees. If a lightly used truck fits better, there is usually something worth a look in our used inventory. And once it is yours, keeping the maintenance current is easy enough to book with our service department.
FAQs
How much does a Ram 1500 weigh?
A 2026 Ram 1500 has a curb weight of roughly 2,280 to 2,410 kg, or about 5,030 to 5,310 lb, across the mainstream Canadian configurations. A Quad Cab Tradesman sits at 2,282 kg (5,031 lb) and a crew cab Sport at 2,410 kg (5,313 lb). Performance and top luxury trims weigh more, so ask for the number on the specific truck.
How long is a Ram 1500?
Between about 5,814 mm and 6,142 mm overall, which is roughly 19 feet 1 inch to 20 feet 2 inches. A Quad Cab with the 6 foot 4 box is 5,814 mm (228.9 in), a crew cab with the 5 foot 7 box is 5,916 mm (232.9 in), and a crew cab with the 6 foot 4 box is about 6,142 mm (241.8 in).
How tall is a Ram 1500?
About 1,971 to 1,974 mm, roughly 6 feet 5.7 inches, on the mainstream trims. Lifted off road trims and taller tire packages sit higher. A stock truck clears a standard 7 foot residential garage door with about six inches to spare, which a roof rack or light bar will eat.
How wide is a Ram 1500?
The body measures 2,085 mm, which is 82.1 inches or about 6 feet 10 inches. That figure excludes the mirrors, and the mirrors add meaningful width on each side, so measure with them in mind for a narrow garage or a tight approach.
Is a Ram 1500 a half ton?
Yes. Half ton is a legacy class name for a light duty pickup, not a payload rating. A current Ram 1500 carries far more than half a ton. If your loads genuinely need more, the Ram 2500 and 3500 are the heavy duty answers.
What is the GVWR and payload of a Ram 1500?
On the configurations Ram Canada publishes for 2026, GVWR runs 3,084 to 3,221 kg, about 6,800 to 7,101 lb, with payload of roughly 789 to 812 kg, about 1,740 to 1,790 lb. Certain engine and axle combinations rate higher, so confirm on the exact build.
The Bottom Line
There is no single Ram 1500 weight or length, and any page that hands you one number is guessing on your behalf. A Ram 1500 weighs roughly 2,280 to 2,410 kg, runs 19 to 20 feet long, stands about 6 feet 5.7 inches tall, and measures 82.1 inches across the body. Which end of each range you land on comes down to cab, box and trim.
If size is what is holding up your decision, the fastest fix is not another chart. Come measure a real one. Bring your garage dimensions, tell us what you tow, and we will point you at the configuration that actually fits your life. Start with the new Ram 1500 inventory, and if you are cross shopping, our Ram 1500 versus F-150 versus Silverado comparison covers how the three stack up on more than size.
Tyler Dunn, Dunn Ram Trucks, Portage la Prairie
